Visualising ECG signals
ECGDrawing takes a called-and-extracted reader instance and renders the lead-specific ECG signals on a GridSpec figure with clinical ECG paper scaling.
The layout is fully controlled by a mapper dict that maps each lead name to a (row_index, col_slice) position in the GridSpec. The ECG visualisation is primarily controlled using ECGStyle and overwritten using various kwarg parameters.
[1]:
from tempfile import NamedTemporaryFile
import matplotlib.pyplot as plt
from ecgprocess.example_data.examples import config_file, list_dicom_paths
from ecgprocess.plot_ecgs import ECGDrawing, ECGStyle
from ecgprocess.process_dicom import ECGDICOMReader
from ecgprocess.utils.config_tools import ConfigParser, DataMap
CM_TO_IN: float = 1 / 2.54
dicom_path = list_dicom_paths()["example_dicom_2"]
Canonical ECG image
The standard clinical ECG is printed on a grid of 1 mm small squares and 5 mm large squares. ECGDrawing cam replicate this using matplotlib.gridspec.GridSpec, one panel per lead, with minor and major grid lines set based on ECGStyle’s paper_speed (mm/s) and mm_per_mv (mm/mV) fields. Signal traces are allowed to cross panel borders (clip_on_trace=False) replicating the physical paper look for large deflections.
The caller controls which leads appear and where via a mapper dict:
mapper = {
# row 0, column 0
'I': (0, slice(0, 1)),
# row 0, column 1
'II': (0, slice(1, 2)),
...
}
Steps:
Parse a config that maps lead names to DICOM tag paths.
Call the reader, then
.extract()to populateWaveFormsandMetaData.Build a
mapperfrom the leads that have data.Pass everything to
ECGDrawing.
Step 1: Parse configuration
A config dict maps each lead name to its DICOM tag path. ConfigParser turns it into a structured config object and DataMap binds it to the expected attribute names.
[2]:
# Config maps standard 12-lead order for this ECG DICOM format.
# skip_empty=True silently drops leads whose tag paths are absent in the file.
ecg_config = {
"WaveForms": [
"I WaveformData.ECG_Leads_0",
"II WaveformData.ECG_Leads_1",
"III WaveformData.ECG_Leads_2",
"aVR WaveformData.ECG_Leads_3",
"aVL WaveformData.ECG_Leads_4",
"aVF WaveformData.ECG_Leads_5",
"V1 WaveformData.ECG_Leads_6",
"V2 WaveformData.ECG_Leads_7",
"V3 WaveformData.ECG_Leads_8",
"V4 WaveformData.ECG_Leads_9",
"V5 WaveformData.ECG_Leads_10",
"V6 WaveformData.ECG_Leads_11",
],
"MedianBeats": [
"I WaveformData.Median_Beats_0",
"II WaveformData.Median_Beats_1",
"III WaveformData.Median_Beats_2",
"aVR WaveformData.Median_Beats_3",
"aVL WaveformData.Median_Beats_4",
"aVF WaveformData.Median_Beats_5",
"V1 WaveformData.Median_Beats_6",
"V2 WaveformData.Median_Beats_7",
"V3 WaveformData.Median_Beats_8",
"V4 WaveformData.Median_Beats_9",
"V5 WaveformData.Median_Beats_10",
"V6 WaveformData.Median_Beats_11",
],
"MetaData": [
"number of leads Waveform Sequence_0.Number of Waveform Channels",
"sampling frequency (original) Waveform Sequence_0.Sampling Frequency",
"signal_unit Waveform Sequence_0.Channel Definition Sequence_0.Channel Sensitivity Units Sequence_0.Code Meaning",
],
}
# NOTE using a temp file here to mimic reading the file.
# during actual applications the config information will live in
# a file which can be used for multiple ECG processing calls.
with NamedTemporaryFile("w") as tmp:
config_file(path=tmp.name, text=ecg_config)
cfg = ConfigParser(tmp.name)()
cfg.map(mapper=DataMap())
print(cfg)
ConfigParser
[WaveForms]
I WaveformData.ECG_Leads_0
II WaveformData.ECG_Leads_1
III WaveformData.ECG_Leads_2
aVR WaveformData.ECG_Leads_3
aVL WaveformData.ECG_Leads_4
aVF WaveformData.ECG_Leads_5
V1 WaveformData.ECG_Leads_6
V2 WaveformData.ECG_Leads_7
V3 WaveformData.ECG_Leads_8
V4 WaveformData.ECG_Leads_9
V5 WaveformData.ECG_Leads_10
V6 WaveformData.ECG_Leads_11
[MedianBeats]
I WaveformData.Median_Beats_0
II WaveformData.Median_Beats_1
III WaveformData.Median_Beats_2
aVR WaveformData.Median_Beats_3
aVL WaveformData.Median_Beats_4
aVF WaveformData.Median_Beats_5
V1 WaveformData.Median_Beats_6
V2 WaveformData.Median_Beats_7
V3 WaveformData.Median_Beats_8
V4 WaveformData.Median_Beats_9
V5 WaveformData.Median_Beats_10
V6 WaveformData.Median_Beats_11
[MetaData]
number of leads Waveform Sequence_0.Number of Waveform Channels
sampling frequency (original) Waveform Sequence_0.Sampling Frequency
signal_unit Waveform Sequence_0.Channel Definition Sequence_0.Channel Sensitivity Units Sequence_0.Code Meaning
Step 2: Read signals
ECGDICOMReader extracts raw waveforms and resamples to 500 Hz. Note, the DICOM signals are in μV so we will need to either change the plotting y-axis defaults or multiply the signal by 1,000. Here we are changing the y-axis settings.
[3]:
reader = ECGDICOMReader(resample_500=True)
reader(path=dicom_path)
reader.extract(config=cfg)
print(f"signal unit: {reader.MetaData['signal_unit']}")
signal unit: microvolt
Step 3: Build the lead-layout mapper
A mapper dict assigns each lead name to a (row, col_slice) position in the GridSpec. This can be used to merge multiple pannels into a single plotting area - see below for an ECG illustration including a rhythm strip.
[4]:
# #### build 4-column clinical mapper
mapper = {
"I": (0, slice(0, 1)),
"aVR": (0, slice(1, 2)),
"V1": (0, slice(2, 3)),
"V4": (0, slice(3, 4)),
"II": (1, slice(0, 1)),
"aVL": (1, slice(1, 2)),
"V2": (1, slice(2, 3)),
"V5": (1, slice(3, 4)),
"III": (2, slice(0, 1)),
"aVF": (2, slice(1, 2)),
"V3": (2, slice(2, 3)),
"V6": (2, slice(3, 4)),
}
mapper
[4]:
{'I': (0, slice(0, 1, None)),
'aVR': (0, slice(1, 2, None)),
'V1': (0, slice(2, 3, None)),
'V4': (0, slice(3, 4, None)),
'II': (1, slice(0, 1, None)),
'aVL': (1, slice(1, 2, None)),
'V2': (1, slice(2, 3, None)),
'V5': (1, slice(3, 4, None)),
'III': (2, slice(0, 1, None)),
'aVF': (2, slice(1, 2, None)),
'V3': (2, slice(2, 3, None)),
'V6': (2, slice(3, 4, None))}

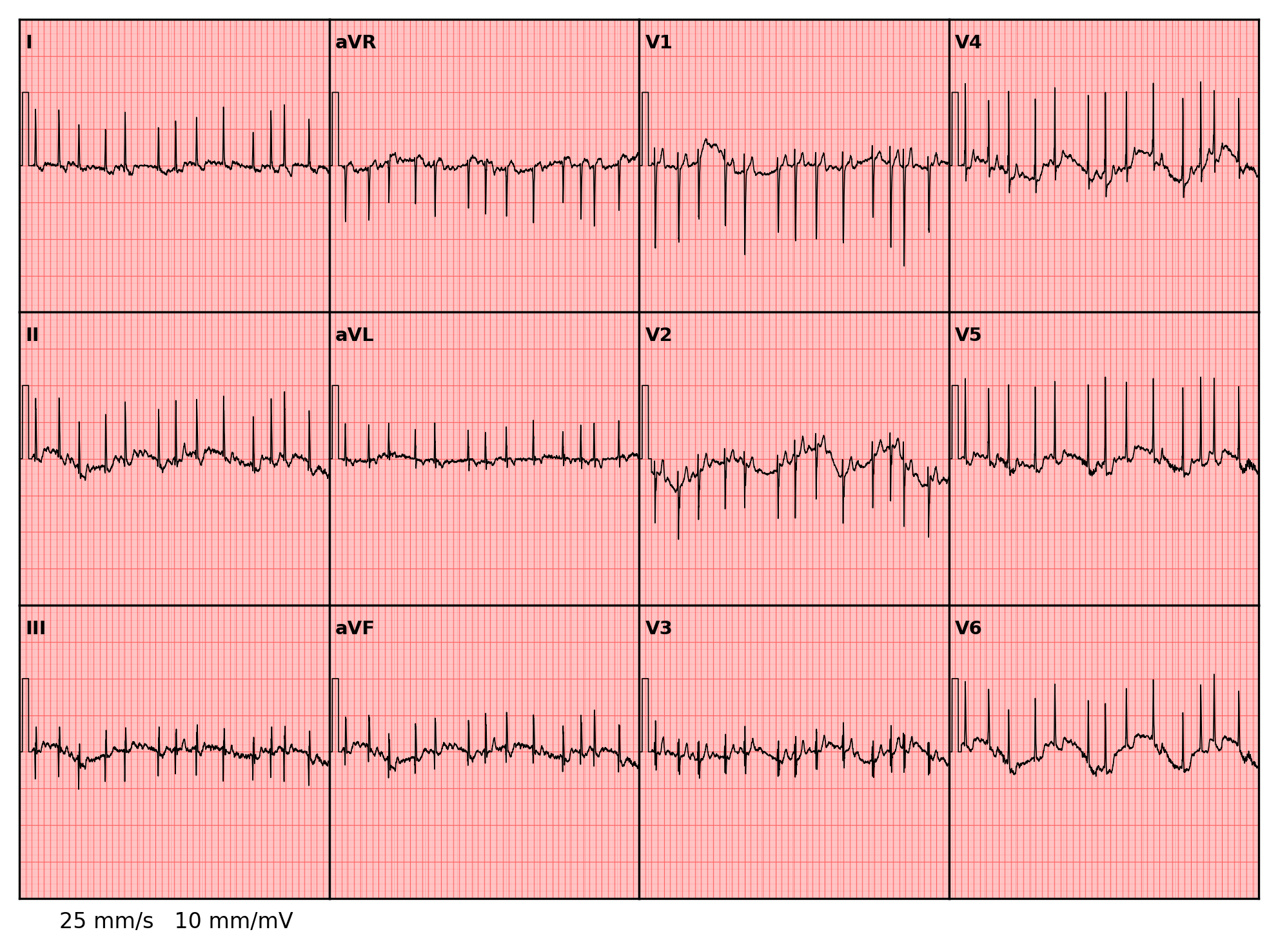

Step 4: Render
ECGDrawing renders all leads onto a GridSpec figure with clinical ECG-paper grid lines (1 mm and 5 mm squares). The speed/gain annotation is added to the figure afterwards.
[5]:
# Determine sampling_rate from MetaData; fall back to 500 if unavailable
samplefreq = reader.MetaData.get("sampling frequency (processed)") or 500
# set the limit to μV and update the mm_per_mv
ylim = (-2000, 2000)
mm_mv = 10 / 1000
# set the style
style = ECGStyle(
figsize=(21 * CM_TO_IN, 15 * CM_TO_IN),
dpi=300,
y_lim=ylim,
mm_per_mv=mm_mv,
)
drawing = ECGDrawing()(
reader,
mapper=mapper,
style=style,
sampling_rate=samplefreq,
show_axes=None,
show_lead_labels=True,
cal_pulse="square",
)
fig = drawing.figure
# #### speed / gain annotation
# NOTE still saying 10 mm/mV and not 0.1 mm/μV because the
# y_lim and mv_mm (gain) have been scaled to this constant
# This is equivalent to mapping the signal to mV (division by 1000)
fig.text(
0.15,
0.08,
f"25 mm/s 10 mm/mV",
fontsize=8,
va="bottom",
ha="left",
transform=fig.transFigure,
)
plt.show()

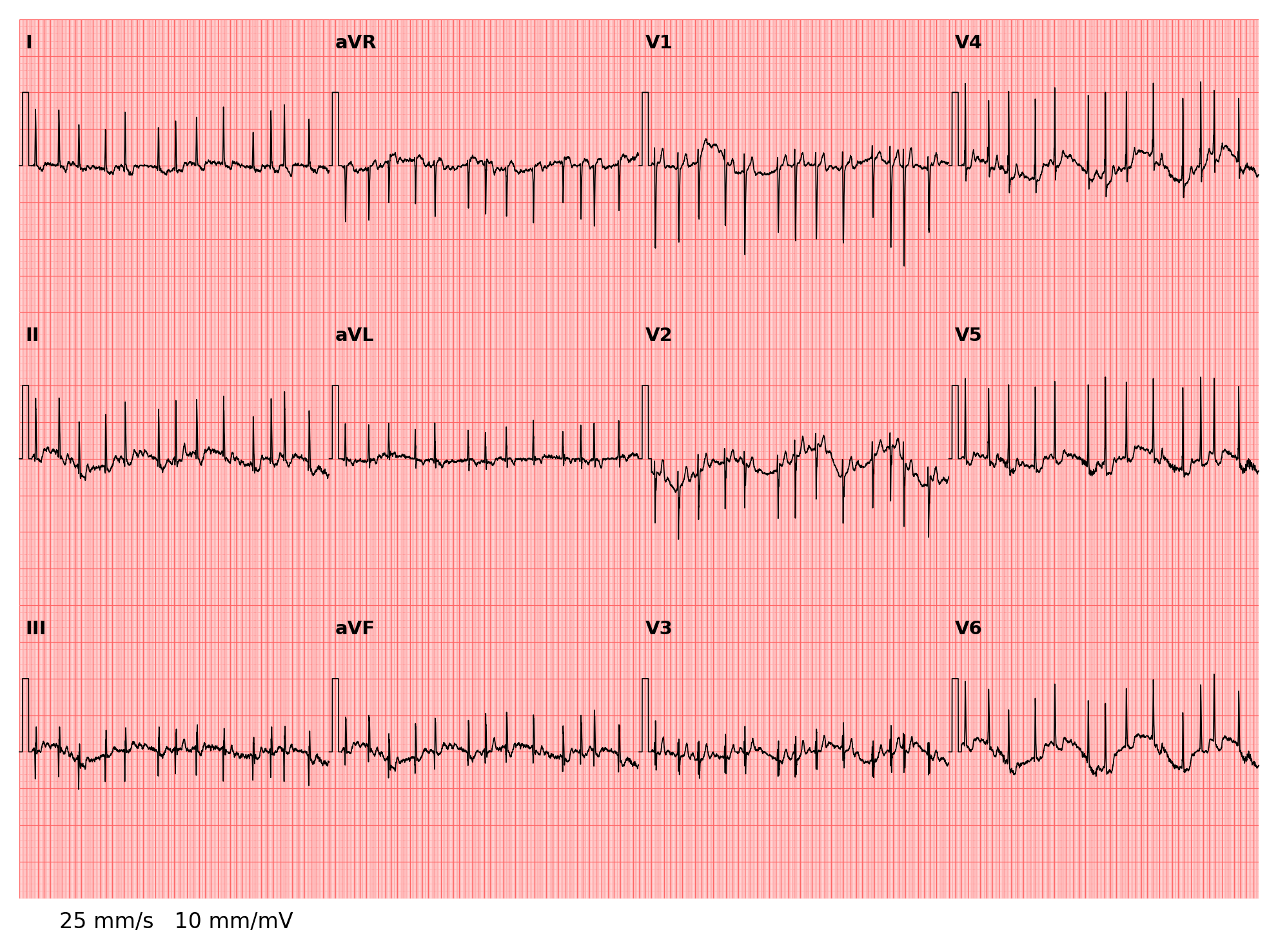

[6]:
# #### canonical ECG without panel borders (clinical paper look)
# Same parameters as the cell above; spine removal added.
drawing_ns = ECGDrawing()(
reader,
mapper=mapper,
style=style,
sampling_rate=samplefreq,
show_axes=None,
show_lead_labels=True,
cal_pulse="square",
)
fig_ns = drawing_ns.figure
fig_ns.text(
0.15,
0.08,
f"25 mm/s 10 mm/mV",
fontsize=8,
va="bottom",
ha="left",
transform=fig_ns.transFigure,
)
for ax in drawing_ns.axes.values():
for spine in ax.spines.values():
spine.set_visible(False)
plt.show()

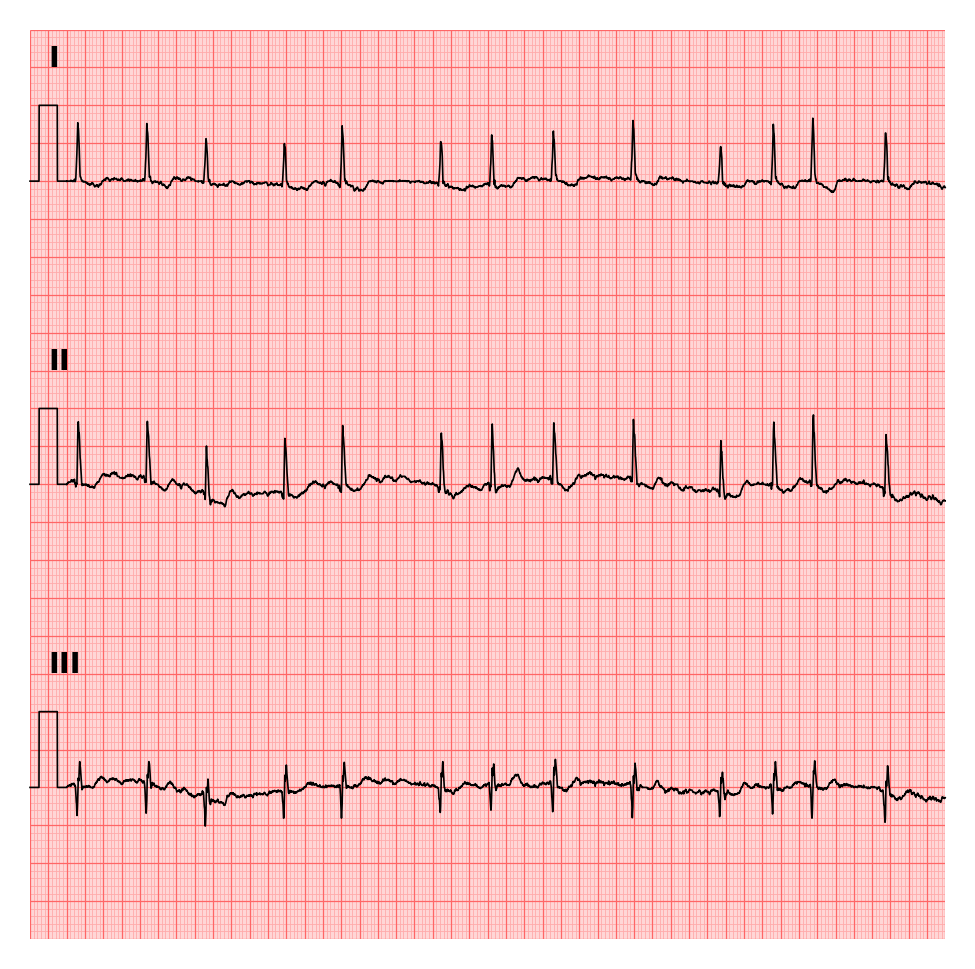

Non-traditional layout: 3-lead monitoring strip
The mapper dict controls which leads appear and where. Passing only three leads, I, II, III stacked in a single column, produces a compact monitoring strip common in bedside telemetry displays.
[7]:
# #### 3-lead monitoring layout
mapper_3lead = {
"I": (0, slice(0, 1)),
"II": (1, slice(0, 1)),
"III": (2, slice(0, 1)),
}
style_3lead = ECGStyle(
figsize=(10 * CM_TO_IN, 10 * CM_TO_IN),
dpi=300,
y_lim=ylim,
mm_per_mv=mm_mv,
)
drawing_3lead = ECGDrawing()(
reader,
mapper=mapper_3lead,
style=style_3lead,
sampling_rate=samplefreq,
show_axes=None,
show_lead_labels=True,
cal_pulse="square",
)
for ax in drawing_3lead.axes.values():
for spine in ax.spines.values():
spine.set_visible(False)
plt.show()
Lead 'V1' is in signal data but not requested in mapper.
Lead 'V2' is in signal data but not requested in mapper.
Lead 'V3' is in signal data but not requested in mapper.
Lead 'V4' is in signal data but not requested in mapper.
Lead 'V5' is in signal data but not requested in mapper.
Lead 'V6' is in signal data but not requested in mapper.
Lead 'aVF' is in signal data but not requested in mapper.
Lead 'aVL' is in signal data but not requested in mapper.
Lead 'aVR' is in signal data but not requested in mapper.

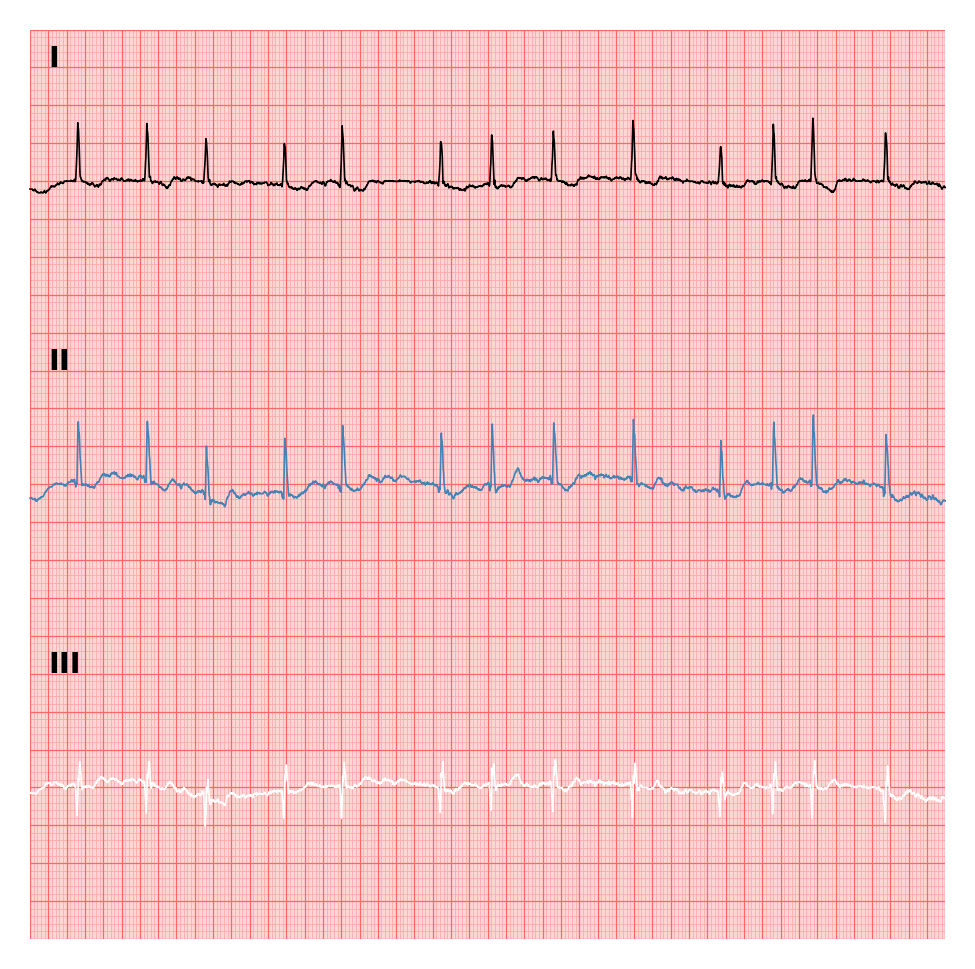

Per-lead trace styling
Any kwargs_* parameter accepts either a flat dict (uniform across all leads) or a dict-of-dicts (one entry per lead). Passing a dict-of-dicts lets you style each lead independently.
Here the same 3-lead layout is redrawn with a different trace colour per lead.
[8]:
# #### per-lead trace colour: I=black, II=steelblue, III=white
drawing_3lead_kw = ECGDrawing()(
reader,
mapper=mapper_3lead,
style=style_3lead,
sampling_rate=samplefreq,
show_axes=None,
show_lead_labels=True,
kwargs_plot={
"I": {"color": "black"},
"II": {"color": "steelblue"},
"III": {"color": "white"},
},
)
for ax in drawing_3lead_kw.axes.values():
for spine in ax.spines.values():
spine.set_visible(False)
plt.show()
Lead 'V1' is in signal data but not requested in mapper.
Lead 'V2' is in signal data but not requested in mapper.
Lead 'V3' is in signal data but not requested in mapper.
Lead 'V4' is in signal data but not requested in mapper.
Lead 'V5' is in signal data but not requested in mapper.
Lead 'V6' is in signal data but not requested in mapper.
Lead 'aVF' is in signal data but not requested in mapper.
Lead 'aVL' is in signal data but not requested in mapper.
Lead 'aVR' is in signal data but not requested in mapper.

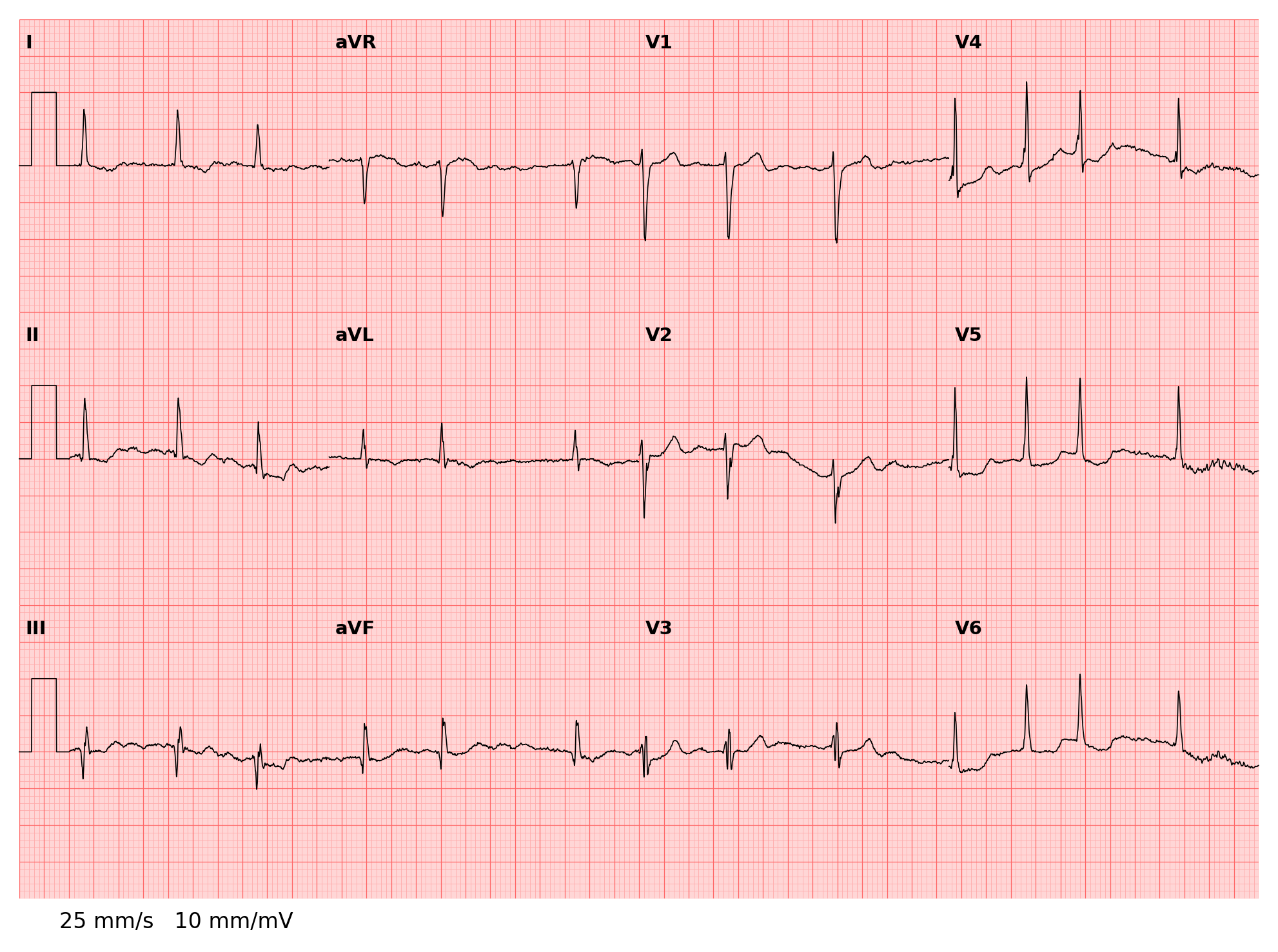

Continuous ECG paper layout
On physical ECG paper a 10-second recording prints as a single continuous strip. The 4-column mapper layout already places leads side-by-side; this cell tiles the x-axis to match: each column displays 1/4 of the total signal duration, and the x values continue from the previous column’s end — mimicking the paper tape. Each row resets to zero independently so that leads in the same column always show the same time window.
[9]:
# #### continuous ECG paper layout
drawing_cont = ECGDrawing()(
reader,
mapper=mapper,
style=style,
sampling_rate=samplefreq,
show_axes=None,
show_lead_labels=True,
cal_pulse="square",
# cal_leads=['I', 'II', 'III', 'II strip'],
).tile_x_axis()
fig_cont = drawing_cont.figure
fig_cont.text(
0.15,
0.08,
"25 mm/s 10 mm/mV",
fontsize=8,
va="bottom",
ha="left",
transform=fig_cont.transFigure,
)
for ax in drawing_cont.axes.values():
for spine in ax.spines.values():
spine.set_visible(False)
plt.show()

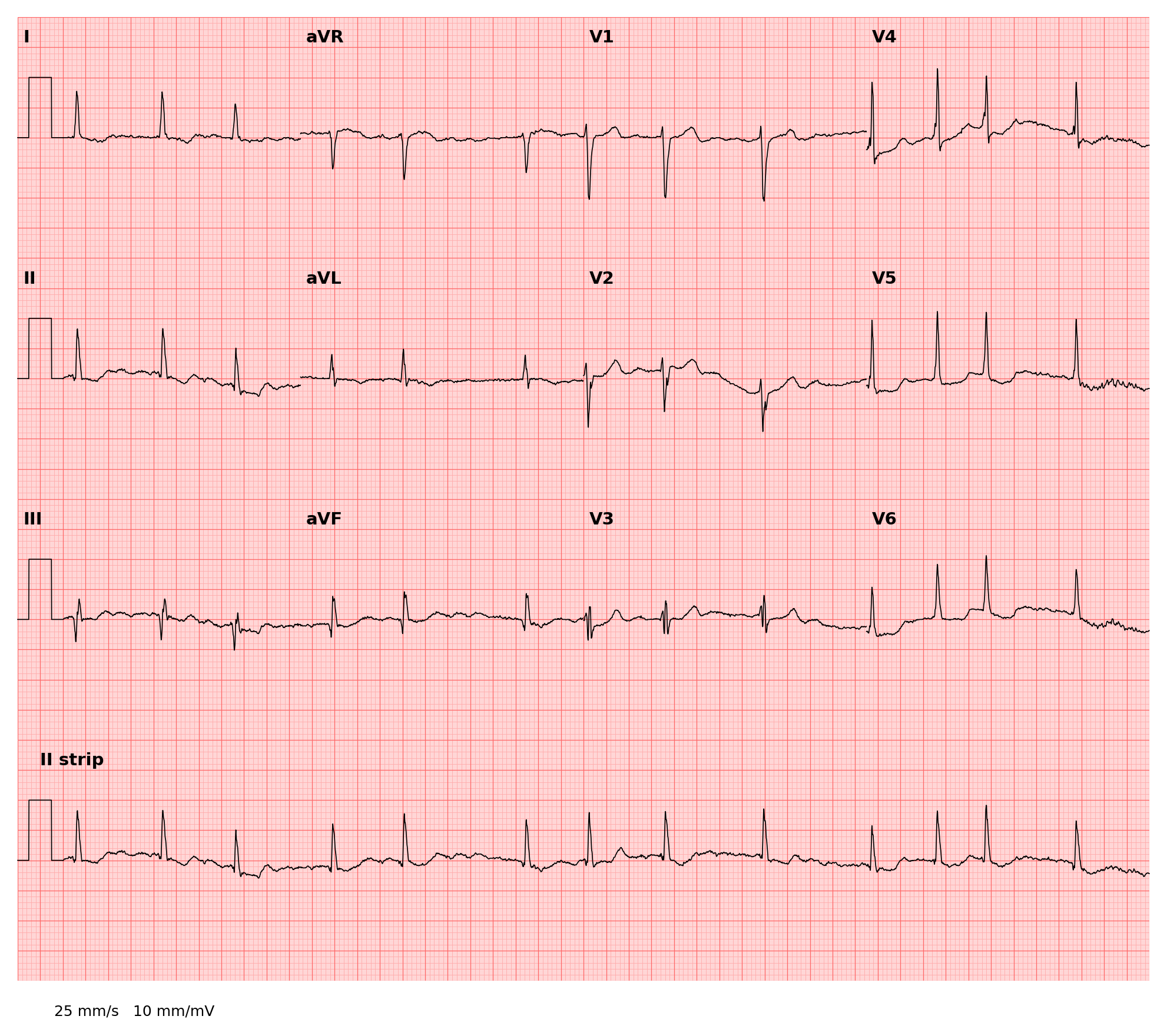

Combined 12-lead with Lead II rhythm strip
A standard clinical printout shows the 12-lead grid followed immediately by a full-width Lead II rhythm strip. Because reader.WaveForms is a plain dict, a temporary key 'II_strip' can be added to map Lead II to a second position (row 3, spanning all 4 columns). The key is removed after drawing.
[10]:
# #### extend mapper with a full-width Lead II rhythm strip at row 3
reader.WaveForms["II strip"] = reader.WaveForms["II"]
mapper_rhythm = dict(mapper)
# combining four panels using slice
mapper_rhythm["II strip"] = (3, slice(0, 4))
style_rhythm = ECGStyle(
figsize=(21 * CM_TO_IN, 18 * CM_TO_IN),
dpi=300,
y_lim=ylim,
mm_per_mv=mm_mv,
)
drawing_rhythm = ECGDrawing()(
reader,
mapper=mapper_rhythm,
style=style_rhythm,
sampling_rate=samplefreq,
show_axes=None,
show_lead_labels=True,
cal_pulse="square",
# cal_leads=['I', 'II', 'III', 'II strip'],
).tile_x_axis()
fig_r = drawing_rhythm.figure
fig_r.text(
0.15,
0.08,
f"25 mm/s 10 mm/mV",
fontsize=6,
va="bottom",
ha="left",
transform=fig_r.transFigure,
)
# #### remove inter-panel borders
for ax in drawing_rhythm.axes.values():
for spine in ax.spines.values():
spine.set_visible(False)
plt.show()
# #### clean up temporary key
del reader.WaveForms["II strip"]

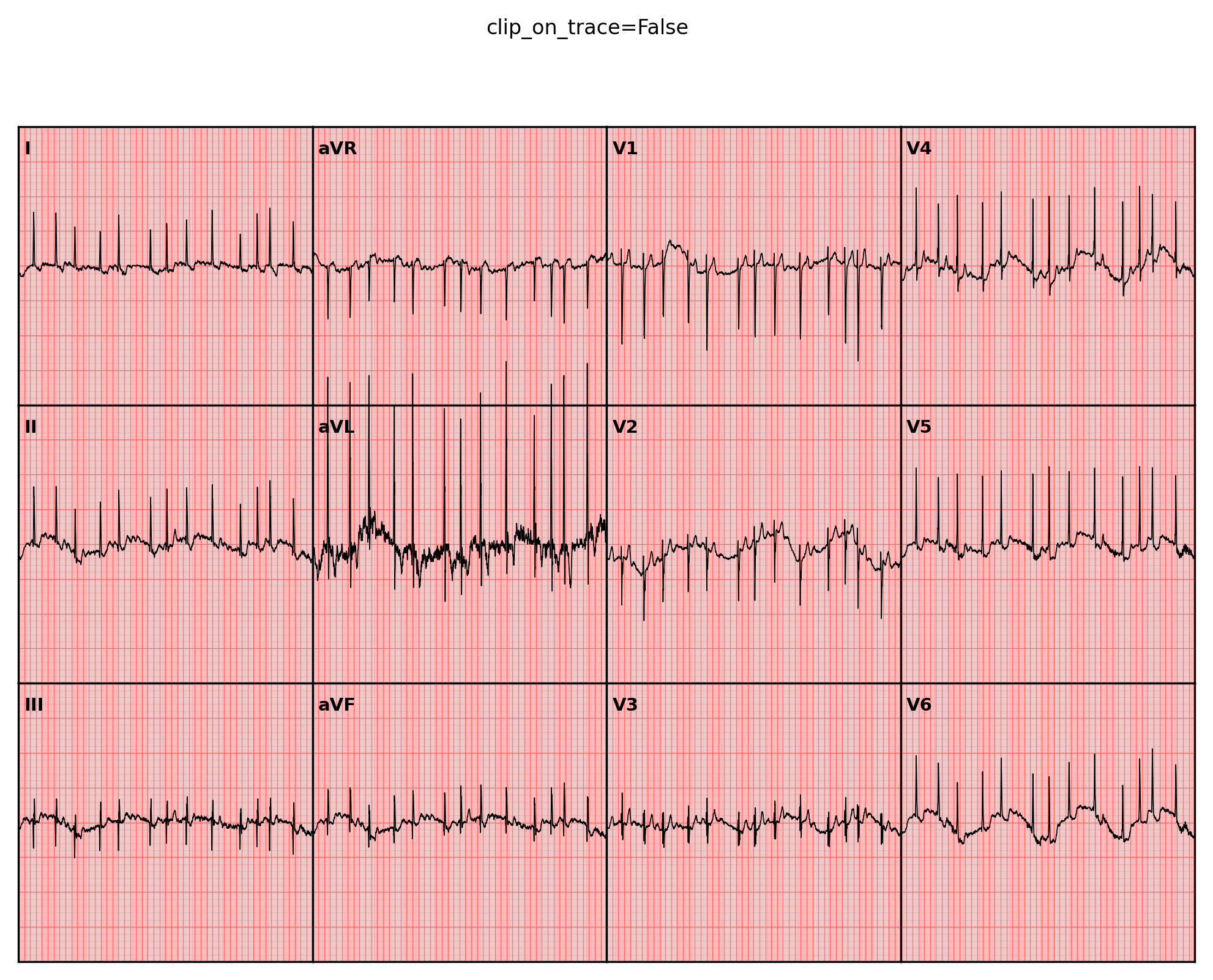

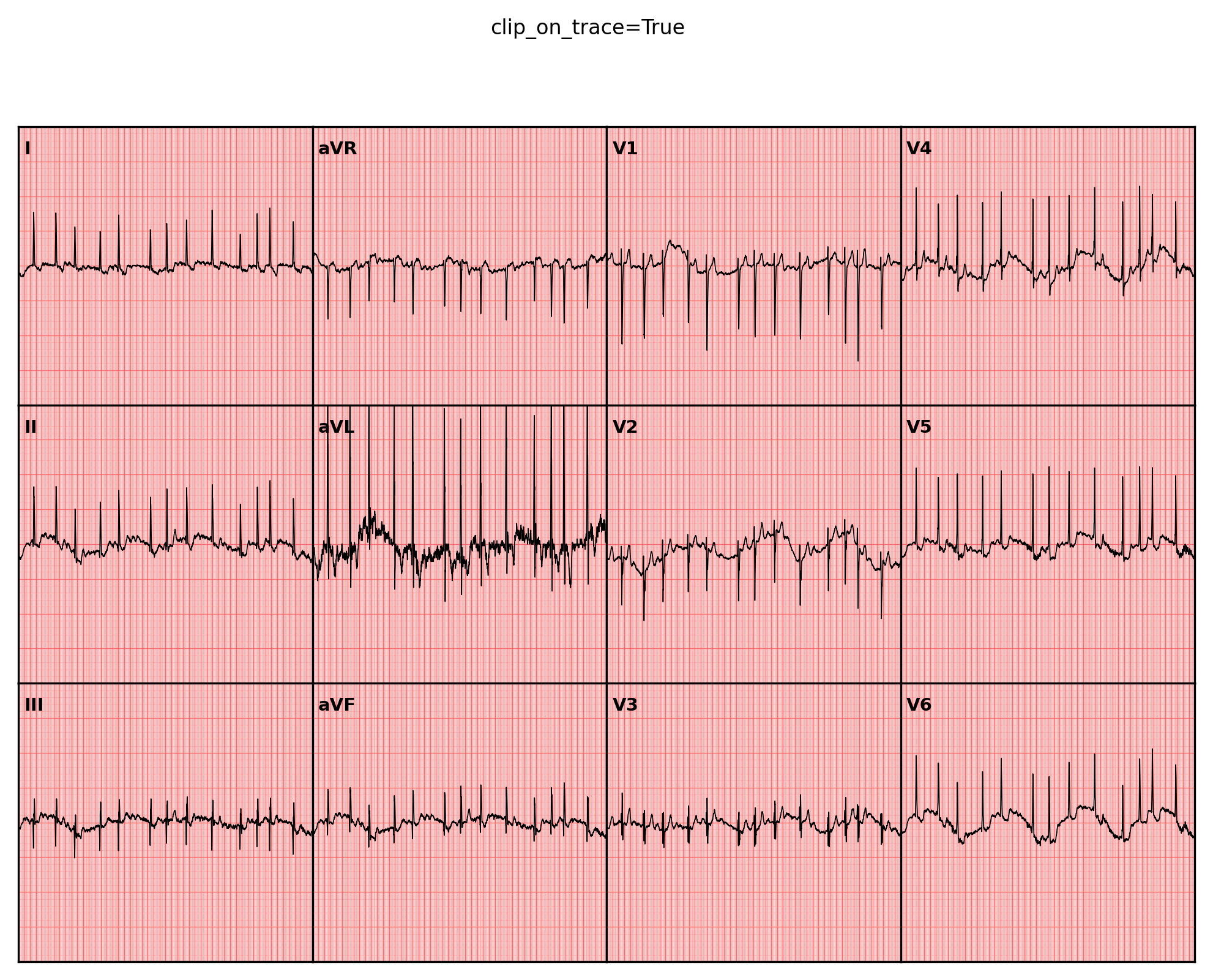

Overplotting: clip_on_trace
ECGStyle.clip_on_trace controls whether signal traces are clipped at panel boundaries. The default (False) allows large deflections (e.g. tall R-waves or deep aVL Q-waves) to cross into adjacent panels, replicating the look of physical ECG paper. Setting clip_on_trace=True clips traces to each panel.
The demo scales aVL ×5 to make the difference visible.
[11]:
# #### temporarily exaggerate aVL to make clipping visible
_orig_aVL = reader.WaveForms["aVL"]
reader.WaveForms["aVL"] = _orig_aVL * 5
style_on = ECGStyle(
figsize=(21 * CM_TO_IN, 15 * CM_TO_IN),
dpi=300,
y_lim=ylim,
mm_per_mv=mm_mv,
clip_on_trace=True,
)
drawing_on = ECGDrawing()(
reader,
mapper=mapper,
style=style_on,
sampling_rate=samplefreq,
show_axes=None,
show_lead_labels=True,
)
drawing_on.figure.suptitle("clip_on_trace=True", fontsize=8)
plt.show()

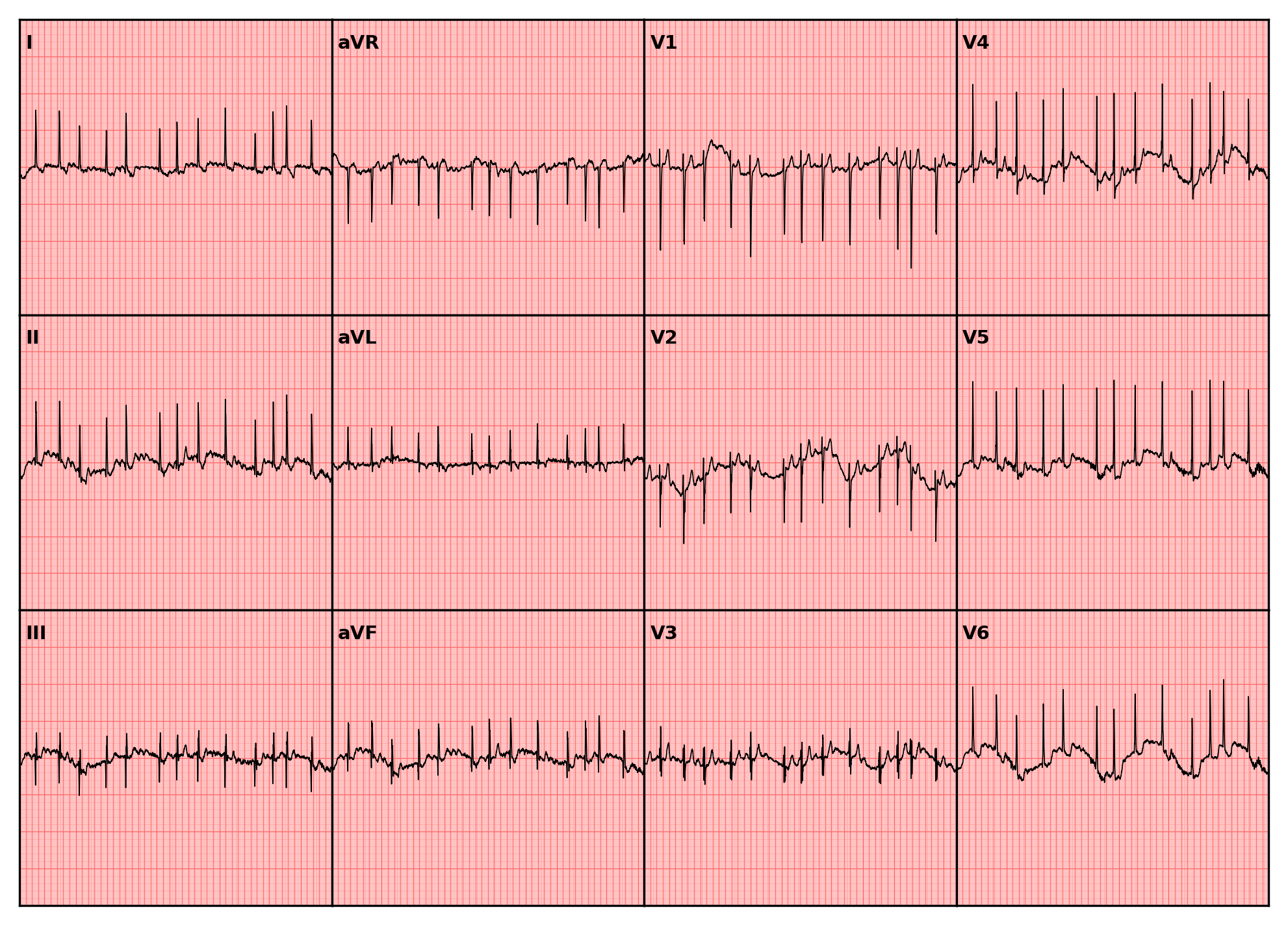

style_off = ECGStyle(
figsize=(21 * CM_TO_IN, 15 * CM_TO_IN),
dpi=300,
y_lim=ylim,
mm_per_mv=mm_mv,
clip_on_trace=False,
)
drawing_off = ECGDrawing()(
reader,
mapper=mapper,
style=style_off,
sampling_rate=samplefreq,
show_axes=None,
show_lead_labels=True,
)
drawing_off.figure.suptitle("clip_on_trace=False", fontsize=8)
plt.show()
# #### restore original amplitude
reader.WaveForms["aVL"] = _orig_aVL

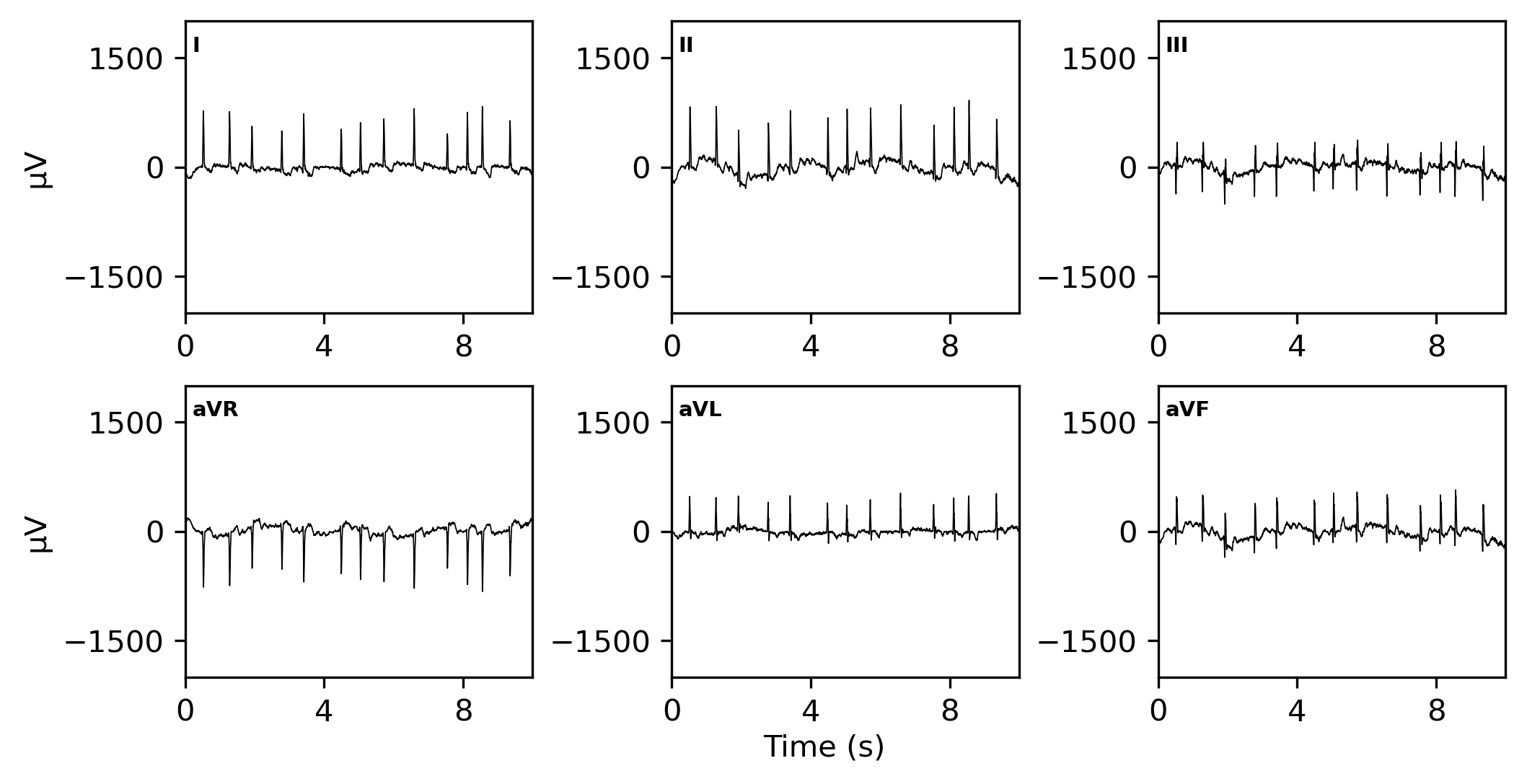

Research figure: limb-leads subset
ECGStyle.hspace and wspace control panel separation (default 0.0 mimics continuous ECG paper). Increasing them and keeping spines visible produces a style suited to research figures or clinical reports. Here the six limb leads are arranged in a 2-row × 3-column grid with both axes displayed.
[12]:
from matplotlib.ticker import MaxNLocator
# #### limb leads, 2×3 grid, separated panels, spines visible
limb_leads = ["I", "II", "III", "aVR", "aVL", "aVF"]
mapper_limb = {
lead: (row, slice(col, col + 1))
for i, lead in enumerate(limb_leads)
for row, col in [divmod(i, 3)]
}
style_research = ECGStyle(
figsize=(20 * CM_TO_IN, 10 * CM_TO_IN),
dpi=300,
hspace=0.25,
wspace=0.40,
y_lim=ylim,
mm_per_mv=mm_mv,
# turning off the grid
major_grid_linewidth=0.0,
minor_grid_linewidth=0.0,
background_colour="white",
)
drawing_research = ECGDrawing()(
reader,
mapper=mapper_limb,
style=style_research,
sampling_rate=samplefreq,
show_axes="b",
show_lead_labels=True,
)
# #### reduce tick density to prevent label overplotting
for ax in drawing_research.axes.values():
ax.xaxis.set_major_locator(MaxNLocator(nbins=3, prune="upper"))
ax.yaxis.set_major_locator(MaxNLocator(nbins=3, prune="both"))
ax.set_xlim(left=0)
# #### y-axis label on leftmost panels only
drawing_research.axes["I"].set_ylabel("µV", fontsize=10)
drawing_research.axes["aVR"].set_ylabel("µV", fontsize=10)
# #### single x-axis label below the figure
fig_research = drawing_research.figure
fig_research.supxlabel("Time (s)", fontsize=10, y=0.01)
# Spines intentionally kept — research-figure style
plt.show()
Lead 'V1' is in signal data but not requested in mapper.
Lead 'V2' is in signal data but not requested in mapper.
Lead 'V3' is in signal data but not requested in mapper.
Lead 'V4' is in signal data but not requested in mapper.
Lead 'V5' is in signal data but not requested in mapper.
Lead 'V6' is in signal data but not requested in mapper.
Plotting from a reader with a custom attribute name (SOURCE_MAP)
ECGDrawing does not hard-code where signal data live on the reader. The SOURCE_MAP class attribute maps each public source keyword to the attribute name looked up via getattr(reader, ...):
ECGDrawing.SOURCE_MAP
# {'waveforms': 'WaveForms', 'median': 'MedianBeats'}
This lets you plot signals from any reader-like object, a third-party reader, a preprocessed wrapper, or a plain types.SimpleNamespace, as long as the named attribute holds a dict[str, np.ndarray] of lead signals.
The example below builds a minimal stand-in reader whose waveform data lives on reader.Traces (instead of WaveForms), registers a new source='traces' entry on a single ECGDrawing instance, and reuses the canonical 12-lead mapper and style to render it.
[13]:
from types import SimpleNamespace
# #### custom reader: signals on `Traces`, not `WaveForms`
# In real code this would be a third-party reader class. Here a plain
# SimpleNamespace shows the only requirement: an attribute whose value is
# a {lead_name: np.ndarray} dict.
custom_reader = SimpleNamespace(
Traces=dict(reader.WaveForms),
MetaData=reader.MetaData,
)
# #### subclass to override SOURCE_MAP
# ECGDrawing uses __slots__, so SOURCE_MAP must be overridden at the class
# level rather than assigned on an instance. Subclass and add the new
# source key alongside the defaults.
class CustomECGDrawing(ECGDrawing):
SOURCE_MAP = {
**ECGDrawing.SOURCE_MAP,
"traces": "Traces",
}
print("subclass SOURCE_MAP:", CustomECGDrawing.SOURCE_MAP)
# #### render using the new source key
drawing_custom = CustomECGDrawing()(
custom_reader,
mapper=mapper,
source="traces",
style=style,
sampling_rate=samplefreq,
show_axes=None,
show_lead_labels=True,
cal_pulse=None,
)
plt.show()
subclass SOURCE_MAP: {'waveforms': 'WaveForms', 'median': 'MedianBeats', 'traces': 'Traces'}
Map figure to numpy array
to_numpy() renders an ECGDrawing figure to a (height, width, 4) uint8 RGBA array. This is useful for embedding ECG images in composite figures or passing them directly to machine-learning pipelines. Pass close=False to keep the underlying matplotlib figure open for further inspection.
[14]:
# #### render two drawings to numpy arrays
# canonical 12-lead
arr_clinical = drawing.to_numpy(close=False)
# limb-leads subset
arr_research = drawing_research.to_numpy(close=False)
print(f"clinical shape={arr_clinical.shape} dtype={arr_clinical.dtype}")
print(f"research shape={arr_research.shape} dtype={arr_research.dtype}")
clinical shape=(1771, 2480, 4) dtype=uint8
research shape=(1181, 2362, 4) dtype=uint8

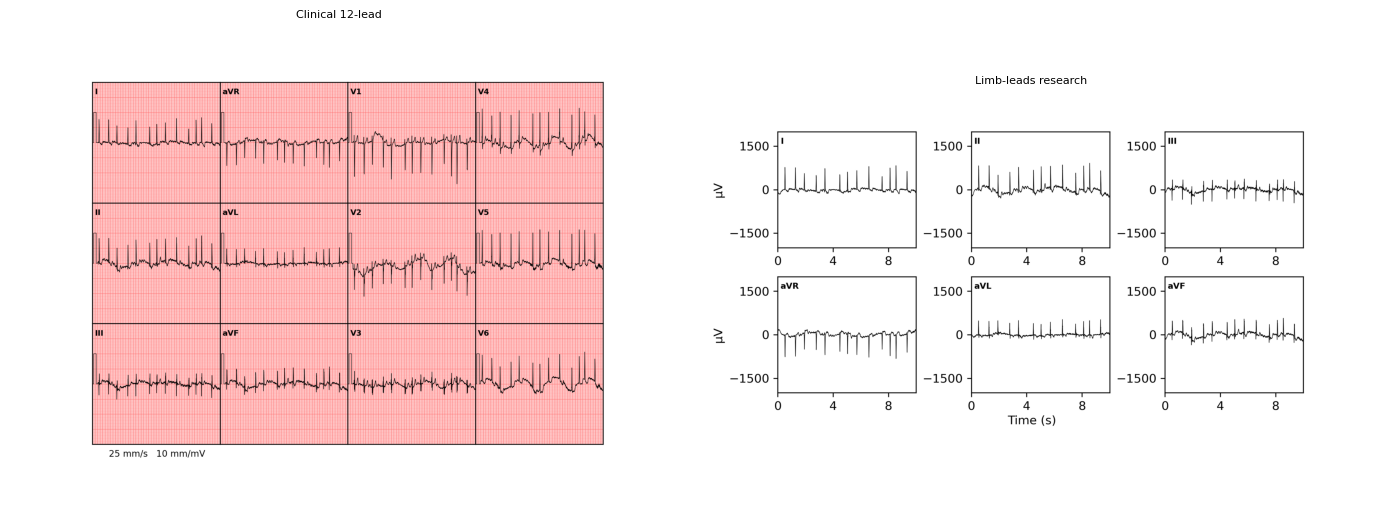

[15]:
# #### embed ECG images in a composite matplotlib figure
fig_comp, axes_comp = plt.subplots(1, 2, figsize=(14, 5))
axes_comp[0].imshow(arr_clinical)
axes_comp[0].set_title("Clinical 12-lead", fontsize=8)
axes_comp[0].axis("off")
axes_comp[1].imshow(arr_research)
axes_comp[1].set_title("Limb-leads research", fontsize=8)
axes_comp[1].axis("off")
fig_comp.tight_layout()
plt.show()
Utility for machine learning
to_numpy() converts any ECG figure to a (H, W, 4) uint8 RGBA array. Slicing to RGB (arr[..., :3]) or converting to grayscale yields a direct input tensor for standard convolutional classifiers — for example arrhythmia detection or rhythm classification models. The approach treats the rendered ECG image as the input representation, which is useful when pre-trained image models are available and raw-signal models are not. Be aware that DPI, figsize, and rendering parameters all become
implicit hyperparameters of the pipeline.
